Details

---

Electric actuator wafer butterfly valves are a perfect solution for those that need prolonged actuation and high flow. For several of our models, no energy is used once fully open or fully closed, while others use negligible amounts. Actuator valves can be run non-stop, 24 hours a day, without risk of overheating.



Electric Actuator Structure Forms: Two Ways.

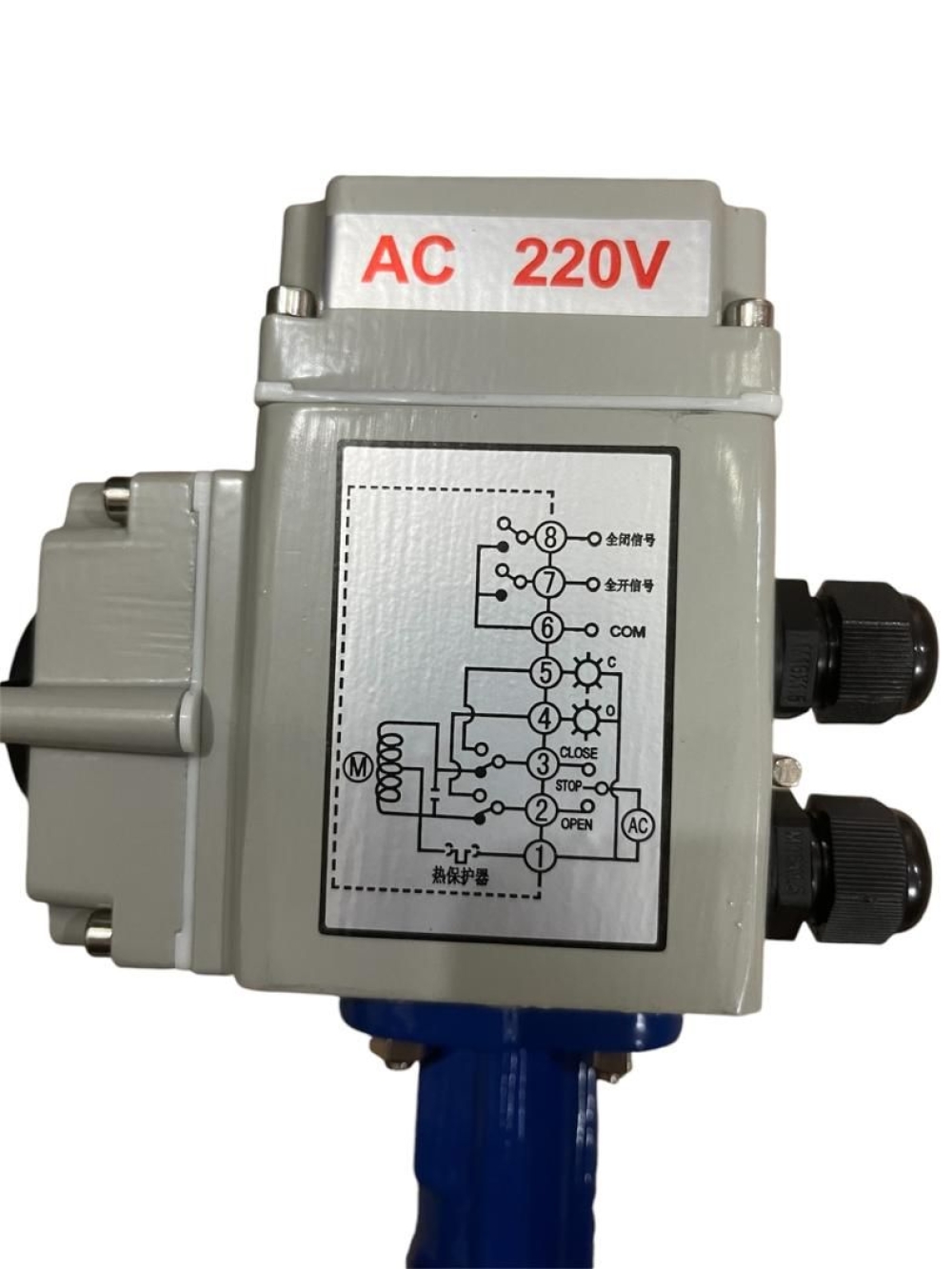

Operation Mode: 3 Wires 2 Ways Control. (The wires are 2 Live & 1 Neutral, require 2 switches to control valve open & close) (Circuit 1 is NEUTRAL, circuit 2 & 3 is LIVE.)



Body: DI (Ductile Iron)

Media: Water/Gas/Oil/Chemical Acid or Alkali

Running Time: 15-18 Seconds

Pressure Nominal: 0-16 Bar (PN16)

Voltage: AC220V/DC24V (IP67)

Torque: 50N.M

Power: AC220V (15W ; 0.15A) DC24V (13W ; 1.28A)

Disc: CF8

Seat: EPDM

Connection: Universal Flange GBF 2" (DN50) - 8" (DN200)
